Manufacturer and supplier of MOBILE BATCHING & MIXING PLANT, TRUSS PAVER for Concrete Road, MINI VIBRATORY ROAD ROLLER, VACUUM DE-WATERING SYSTEM for Industrial Floor and CC Road, VIBRATORY EARTH RAMMER, CONCRETE CUTTING MACHINES for Cutting of Concrete Joint, MINI CRANE for High Rise Building for Lifting Material, BAR BENDER & BAR CUTTER for Tor Steel.

MOBILE BATCHING PLANT
CONCRETE TRUSS PAVER
CONCRETE VACUUM DE - WATERING SYSTEM
CONCRETE CUTTER
KERB CUTTING MACHINE
VIBRATORY ROAD ROLLER
VIBRATORY EARTH COMPACTOR
MINI CRANE
MOBILE TOWER LIGHT

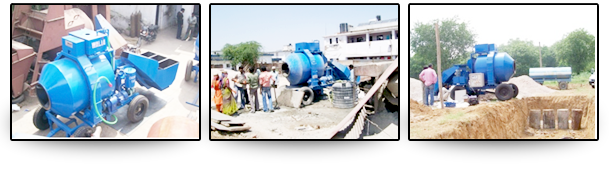

MOBILE BATCHING PLANT

WALIA MOBILE BATCHING PLANT production capacity 12 to 15cum / hr, 3 bin hopper with hydraulic tipping (capacity 1450 kg). Drum powered by 10 h.p Gear Motor. Direct water flow meter, 125 Ltrs stand by water tank. Load cell based weighing system with digital display per batch. All control from one control panel by single operator. Batch wise print out system. Manufacturer as per IS 4925:2004.

TECHNICAL DATA
SPECIFICATIONS	MODEL NO. PP - 450 (E) 3B
CAPACITY	12 to 15 Cum /Hr
Bucket Capacity	1450 Kg
Water Tank	125 Liters
Total Power	14 H.P.

OPTIONAL EXTRAS

1. Batch Wise Tabulated Print Out.
2. Chemical Dozing Unit.

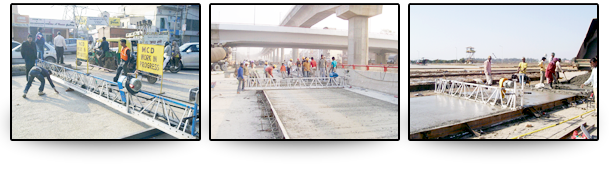

CONCRETE TRUSS PAVER

WALIA CONCRETE TRUSS PAVER is designed & manufactured from graded section for laying, leveling and compaction of concrete. Grade of M-10 to M-40 with different slump can be casted with this machine. The Walia Truss Paver is most suitable for paving of concrete from 3 mtrs to 15 mtrs and a thickness of 75mm to 350mm can be easily laid with this machine. Walia Truss Paver easily works on steel and wooden shuttering & there is no special track is required for casting the concrete. Machine is ideally suited CITY ROADS, RIGID PAVEMENTS (PQC), DECK SLABS, WEARING COURSE, RUNWAYS AND HANGERS. 10 Mtr. 12.5 Mtr. 15 Mtr Paving Length Pavers are also available.

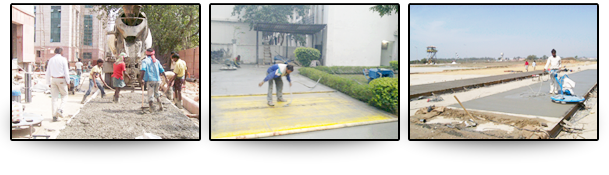

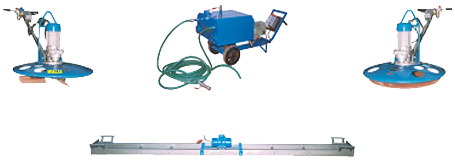

WALIA CONCRETE VACUUM DE - WATERING SYSTEM

WALIA VACUUM DE-WATERING SYSTEM is designed to eliminate the all ill effects of extra water presence inside the concrete. Through Vacuum treatment, the surplus water is removed from the concrete, which means that the water / cement ratio is drastically reduced after placing. A lowered water / cement ratio automatically leads to noticeable improvements of almost each of concrete properties.

APPLICATIONS	ADVANTAGES
CONCRETE ROADS	40-70% Higher Compressive Strength
INDUSTRIAL FLOORS	100-150% INCRESE IN THE WEAR RESISTANCE ABERRISON)
RAILWAY PLATFORM	50% REDUCTION IN SHRINKAGE CRACKS
STORAGE PLANTS	EARLIER STRENGTH GAIN INCREASE IN FOEST RESISTANCE
WEARING COURSE	POROSITY IS REDUCED BY 20%
PARKING DECKS	SURFACE PERMEABILITY IS REDUCED TO ï¿½0ï¿½
AIRPORT HANGERS

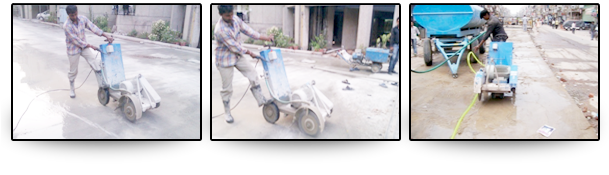

CONCRETE CUTTER

CONCRETE CUTTING MACHINE is ideal equipment for cutting the hard concrete for Dummy Joints, Asphalt Pavement, Asphalt Road & Trench Cutting. Light in weight makes it easy for one operator to handle, gives accurate required depth cut as control mechanism is fitted in the machine, water spray attachment, powered by electric motor or diesel engine.

MODEL	MAXIMUM	WIDTH OF CUT	PRIME MOVER	POWER RATING	DIAMOND BLADE SIZE
PP-65	50 MM	2.5 MM	Electric Motor	5 H.P	250 MM ï¿½
PP-65 (D)	50 MM	2.5 MM	Diesel Engine	5 H.P	250 MM ï¿½
PP-110	100 MM	4 & 6 MM	Electric Motor	7.5 H.P.	350 MM ï¿½
PP-110 (D)	100 MM	4 & 6 MM	Diesel Engine	8.3 H.P.	350 MM ï¿½
PP-126	150 MM	4.6 & 8 MM	Electric Motor	10 H.P.	450 MM ï¿½
PP-126(D)	150 MM	4.6 & 8 MM	Diesel Engine	8.3 H.P.	450 MM ï¿½

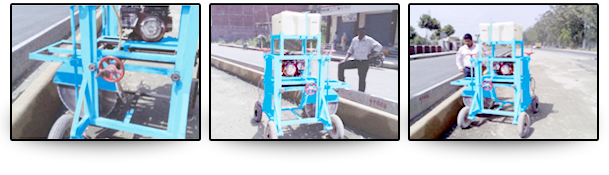

KERB CUTTING MACHINE

WALIA KERB CUTTER MACHINE Powered by Electric Motor or Petrol Engine Capable of Maximum Depth cut 250 mm, water Spray Attachment, 100 Ltr. Capacity Water tank, Depth Adjustment by Easy Screw with 1 no. of Diamond Blade (size 5 mm x 600 mm), Weight for the Machine 220 Kgs Machine Dimension 1500 x 1450 x 2000 mm.

MODEL	WEIGHT	MAXIMUM DEPTH CUT	WIDTH OF CUT	BLADE DIA	PRIME MOVER	POWER RATING	WATER TANK CAPACITY
PP-200 E	150 KG	250 MM	6 MM	600 MM	Electric Motor	7.5 H.P.	100 ltr.
PP-200	190 KG	250 MM	6 MM	600 MM	Petrol Engine	5.0 H.P.	100 ltr.

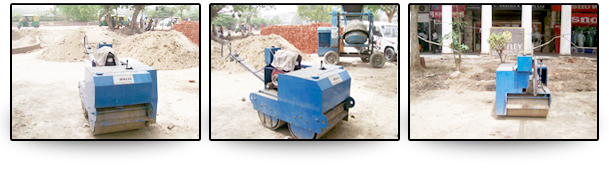

VIBRATORY ROAD ROLLER

WALIA DOUBLE DRUM VIBRATORY ROAD ROLLER, Walk Behind Type, having Rolling Width of 750mm and Weight 1100kgs. Approximately. These Vibratory Rollers are Double Drum with Vibrations in Both Drums and an all Wheel Drive. These Rollers Employ the Double Vibratory Principle Providing Superior Compaction.

The machine is most suitable for Road Widening Works, Pothole repairs, Rural Roads, Ideal for working in Trenches, for Compactions of Dry Lean Concrete etc.

TECHNICAL DATA
SPECIFICATIONS	WVR 751
Net Weight	1100 Kgs. Approx
Drum Width	750 mm
Grade ability without vibrations	40%
Vibratory Drum 2 nos. (F + R both)
Amplitude	0.5 mm
Centrifugal Force	2 x 1850 Kgs.
Engine Make	GREAVES
Power Rating	8.3 H.P.

VIBRATORY EARTH COMPACTOR

WALIA PLATE COMPACTORS are self Propelled, Light in Weight and Compact Machines having High Forces, Low Amplitude and High Frequency. Compaction of Non-Cohesive Soil, Subgrade, Maneuvers close to Abutments, Retaining Walls, Ideal for Trenches, Cannel Embankments, Back fill Jobs, Factory Floor, Foundations, Bridge approaches etc.

MODEL	WEIGHT (Approx)	Compaction Capacity	Primer Mover	Power Rating	Plate Size	Working Capacity	Depth Effect
PP-11	95 KG	1-2 Tons	Diesel / Greaves	3/1 H.P.	14 x 24 Inch	3000 Sqft/h	6 inch
PP-11 (E)	85 KG	1-2 Tons	Electric Motor	3.0 H.P.	14 x 24 Inch	3000 Sqft/h	6 inch
PP-21	205 KG	4-6 Tons	Diesel/Greaves	5.0 H.P.	20 x 32 Inch	4000 Sqft/h	12 inch
PP-21 (E)	175 KG	4-6 Tons	Electric Motor	5.0 H.P.	20 x 32 Inch	4000 Sqft/h	12 inch

MINI CRANE

WALIA MINI CRANE is most suitable for lifting building material such as sand, aggregate, concrete, bricks, steel and other construction material. It is widely used in high rise building. No foundation is required for using this crane, self balanced with use in small counter weight by adding sandbags. Boom of 6.5fts with 360 degree movements, extra safety auto mechanical brakes on power failure and auto rewinding system.

SPECIFICATIONS	PP MINI 300	PP MINI 500
Capacity	300 Kg	500 Kg
Height	30-120 Meters	30-120 Meters
Boom Lenth	6.5 Ft	6.5 Ft
Rotation	360 degree	360 degree
Prime Mover	3 HP Crompton	5 HP Crompton Motor
Wire Rose	3 HP Cropton	5 HP Cropton Motor
Wire Rope	10 mm Usha Martin	10 mm Usha Martin
Bucket Size	L 750 x W 750 x 342 mm	L 920 x W 920 x H 423 mm
Bucket Volume	120 Litres	225 Litres

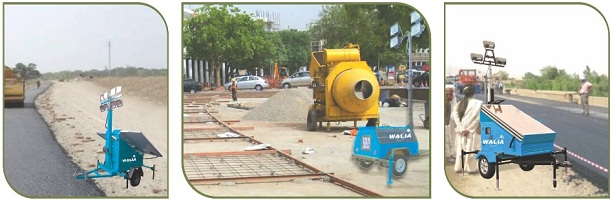

MOBILE TELESCOPIC LED LIGHT TOWER

Walia mobile tower are most suitable for construction site, mines, port and defense establishment our machine are compact in size and east to maneuver from one site to other site. LED mobile light towres are design to provide high power, efficincy and performance. best equipment for working sites in night time Walia mobile light towers are powered by diesel engine or solar panels. Manual winch operated mast telescope upto 8000 mm, 360 degree mast rotation, mounted on a heavy duty wheel trailer.
